Chevrolet Cobalt Service & Repair Manual: Wheel Hub & Bearing, Replace
Rear
Disc Brakes
| 1. |
Raise and support vehicle, then the
tire and wheel assembly. |
| 2. |
Without disconnecting the hydraulic
brake flex hose, remove and support rear brake caliper and bracket
as an assembly. |
| 3. |
Mark position of brake rotor to wheel
studs, then remove brake rotor. |
| 4. |
Disconnect electrical connector from
wheel speed sensor. |
| 5. |
Remove wheel bearing/hub assembly mounting
nuts. |
| 6. |
Remove wheel bearing/hub assembly and
disc brake backing plate from rear axle assembly. |
| 7. |
Reverse procedure to install. |
|
Drum Brakes
| 1. |
Raise and support vehicle. |
| 2. |
Remove tire and wheel assembly. |
| 4. |
Remove plug from drum brake actuator
access hole in backing plate, Fig. 1. |
| 5. |
Install a support for brake backing
plate through access hole. |
| 6. |
Disconnect electrical connector from
wheel speed sensor. |
| 7. |
Remove wheel bearing/hub assembly mounting
nuts, then the wheel bearing/hub assembly from rear axle and brake
backing plate. |
| 8. |
Reverse procedure to install. |
|

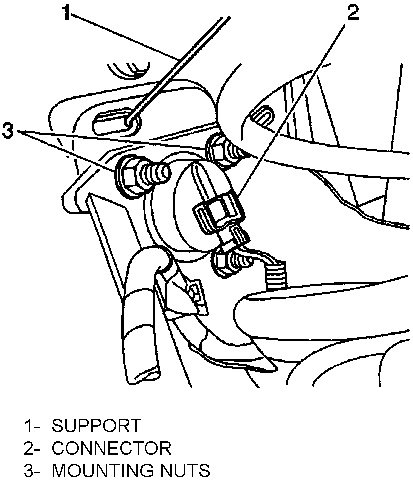

Fig. 1 Backing plate support installation. Cobalt & G5
Front
1.
Raise and support vehicle using suitable
lift.
2.
Remove tire and wheel assemblies.
3.
Remove driv ...
1.
Raise and support the vehicle.
2.
Remove the tire and wheel assembly.
3.
Remove the brake rotor assembly.
...
