Chevrolet Cobalt Service & Repair Manual: Oil Pressure Switch R&R
| Refer to Fig. 1
when performing following procedure. |
| 1. |
Disconnect battery ground cable. |
| 2. |
Raise and support vehicle. |
| 3. |
Remove starter solenoid terminal nut. |
| 4. |
Remove positive battery cable terminal
from starter. |
| 5. |
Remove starter solenoid wire terminal
from starter. |
| 6. |
Disconnect engine harness connector
from starter. |
| 7. |
Remove starter bolts and starter,
Fig. 2. |
| 8. |
Disconnect engine wiring harness electrical
connector from oil pressure switch. |
| 9. |
Remove engine oil pressure switch. |
| 10. |
Reverse procedure to install, noting
the following: |
| |
a. |
Torque starter bolts to 30 ft.
lbs. |
| |
b. |
Torque starter solenoid terminal
nuts to 13 ft. lbs. |
|

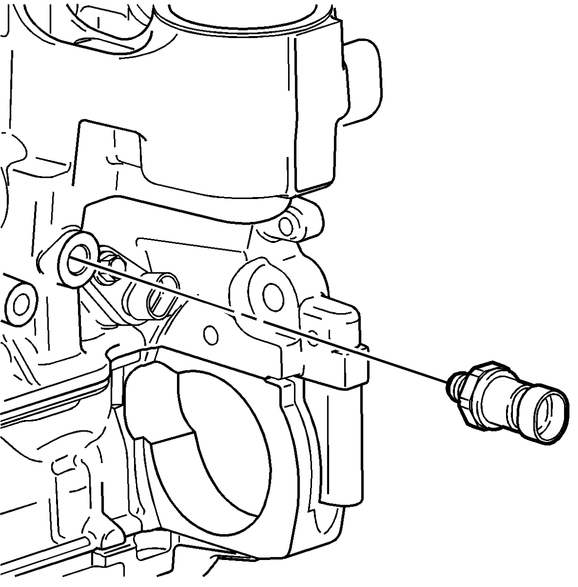

Fig. 1 Oil pressure switch replacement

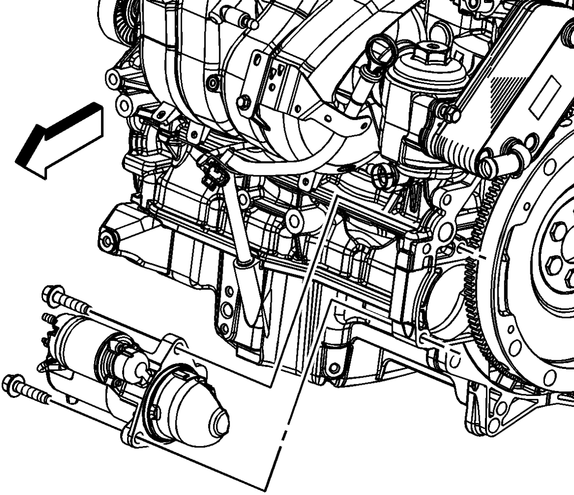

Fig. 2 Starter replacement
