Refer to Fig. 1 when performing the following procedure.
1. Raise and support the vehicle.
2. Remove front stabilizer shaft clamp bolt.
3. Remove front stabilizer shaft clamp nut.
4. Remove front stabilizer shaft clamp.
5. Remove front stabilizer shaft insulator.
6. Reverse procedure to install. Torque front stabilizer shaft clamp nut and bolt to 37 ft. lbs.

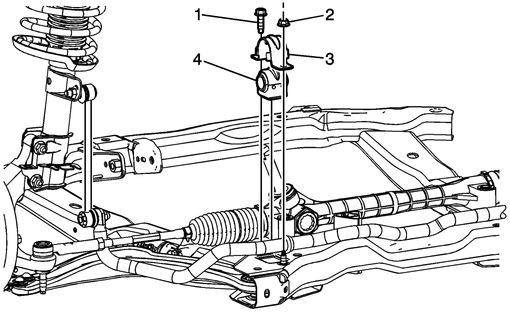

Fig. 1 Stabilizer shaft insulator replacement
