Chevrolet Cobalt Service & Repair Manual: Floor Console
| 1. |
Remove clips and floor console cup
holder. |
| 2. |
Remove mounting bolt and floor console
armrest, Fig. 1. |
| 3. |
Pull park brake lever up, then disconnect
park brake lever opening trim plate retaining clips and cupholder,
Fig. 2. |
| 4. |
Remove floor console transmission shifter
plate and disconnect electrical connectors. |
| 5. |
Remove rear cupholder. |
| 6. |
Remove floor console extensions, tilting
forward to disconnect upper clips and hooks. |
| 7. |
Remove mounting screws and center floor
console, Fig. 3. |
| 8. |
Reverse procedure to install, torque
console armrest to 80 inch lbs. |
|

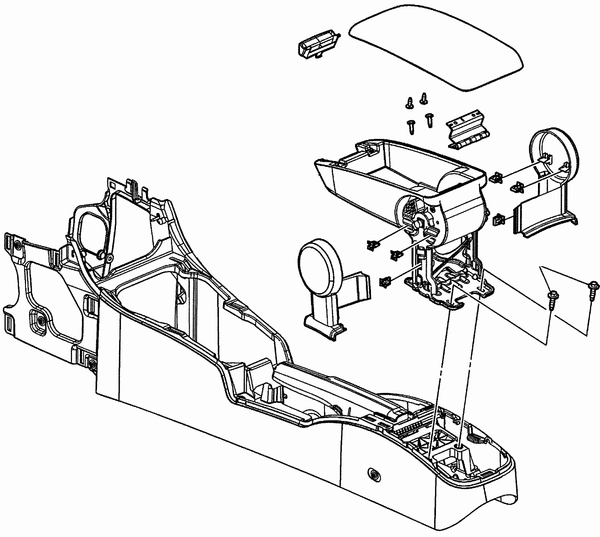

Fig. 1 Floor console armrest replacement

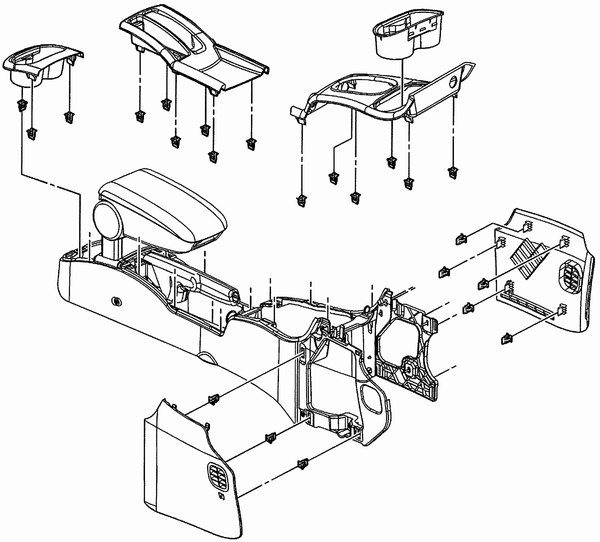

Fig. 2 Console trim panel replacement

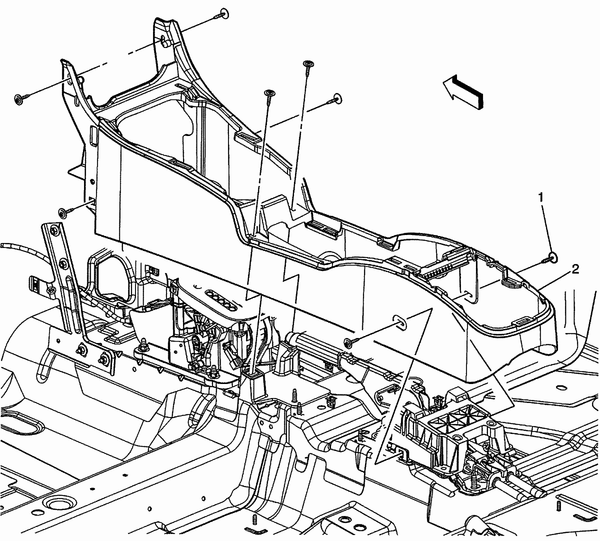

Fig. 3 Center floor console replacement
