Chevrolet Cobalt Service & Repair Manual: Tail Lamp Bulb, Replace
Coupe
| 2. |
Pull stop, tail and turn signal bulb
(1) straight from socket to remove, Fig. 1. |
| 3. |
Reverse procedure to install. |
|
Sedan
| 2. |
Rotate tail lamp bulb harness (1) sockets
counterclockwise and remove from lamp housing, Fig. 2. |
| 3. |
Pull stop, tail and turn signal lamp
bulb (3) straight from socket to remove, Fig. 2. |
| 4. |
Reverse procedure to install. |
|

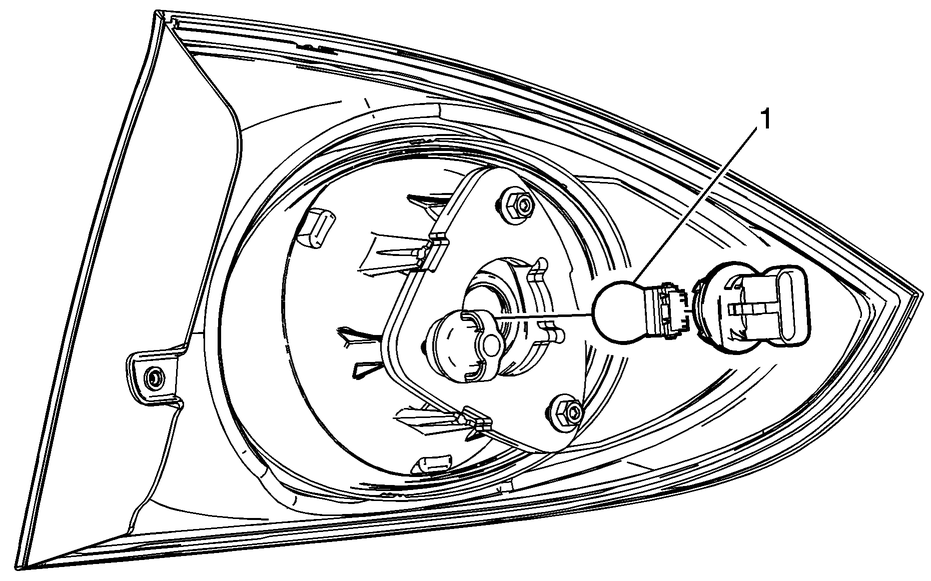

Fig. 1 Tail lamp bulb removal. Coupe

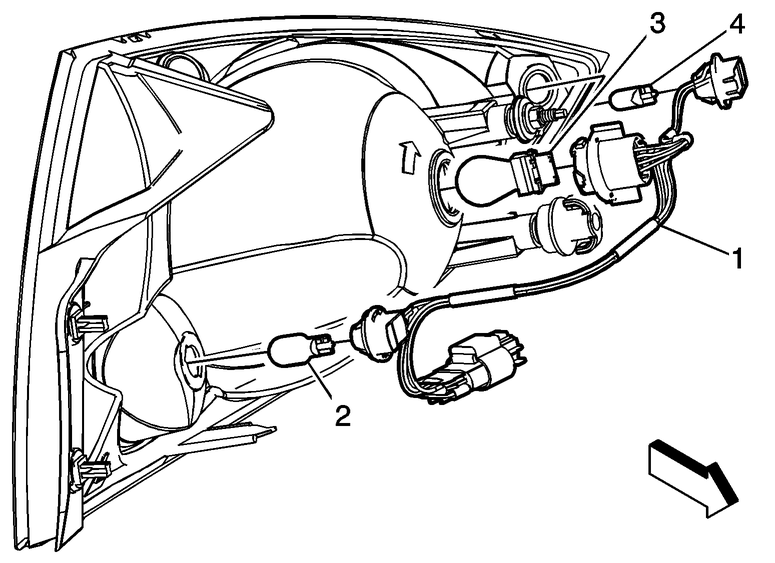

Fig. 2 Tail lamp bulb removal. Sedan
