Chevrolet Cobalt Service & Repair Manual: Rear Side Marker Lamp Bulb, Replace
Coupe
| 1. |
Remove rear side marker lamp. |
| 2. |
Rotate rear side marker lamp bulb socket
(1) counterclockwise and remove from lamp housing, Fig.
1. |
| 3. |
Remove rear side marker lamp bulb (2),
Fig. 1. |
| 4. |
Reverse procedure to install. |
|
Sedan
| Warning: Halogen bulbs contain
gas under pressure. Handling a bulb improperly could cause it to shatter
into flying glass fragments. To help avoid personal injury: Turn off the
lamp switch and allow the bulb to cool before changing the bulb. Leave the
lamp switch OFF until the bulb change is complete. Always wear eye protection
when changing a halogen bulb. Handle the bulb only by its base. Avoid touching
the glass. Keep dirt and moisture off the bulb. Properly dispose of the
used bulb. Keep halogen bulbs out of the reach of children. |
| Caution: Avoid touching the
bulb or letting the bulb come in contact with anything damp. Oil from your
skin or moisture on the bulb can cause the bulb to explode when the bulb
is turned on. If either comes in contact with the bulb, clean the bulb with
alcohol or a suitable degreaser and wipe the bulb dry. |
| 1. |
Remove tail lamp assembly. |
| 2. |
Twist and remove rear side marker lamp
bulb socket (1) from tail lamp assembly, Fig. 2. |
| 3. |
Remove rear side marker lamp bulb (2),
Fig. 2. |
| 4. |
Reverse procedure to install. |
|

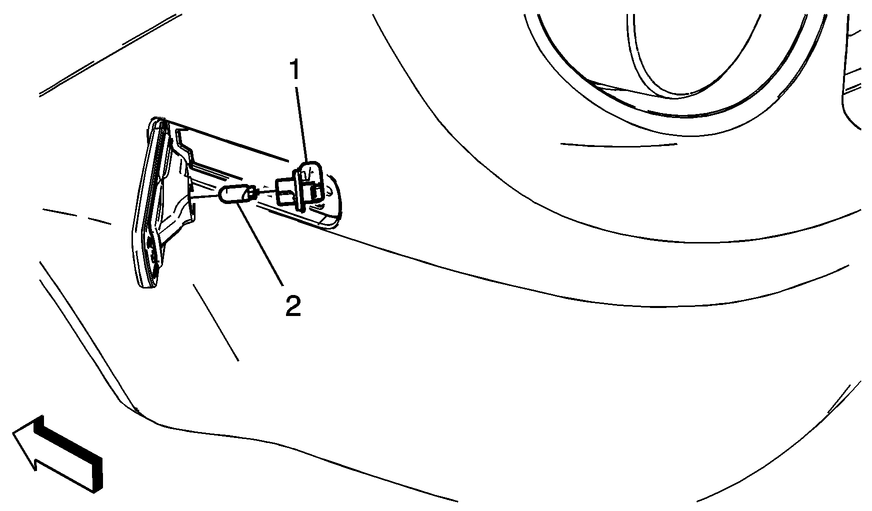

Fig. 1 Rear side marker lamp bulb removal. Coupe

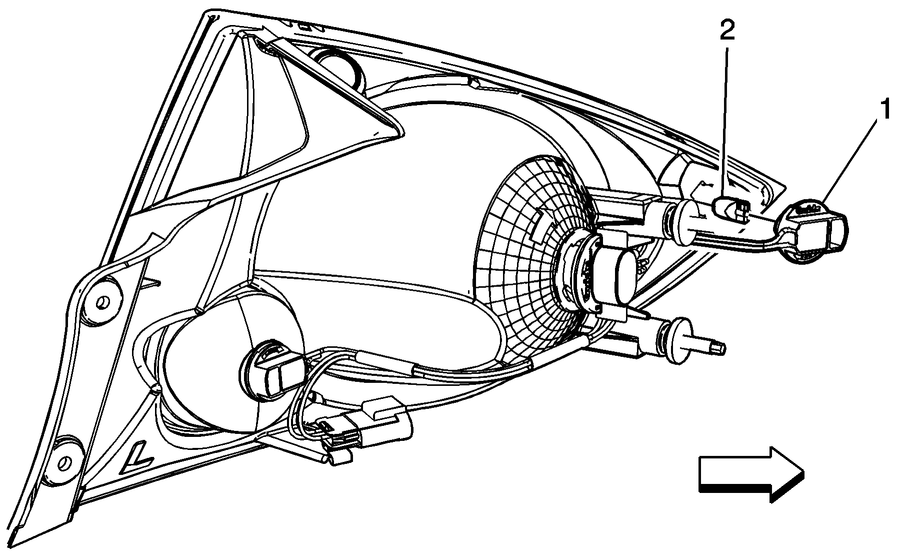

Fig. 2 Rear side marker lamp bulb removal. Sedan
