Chevrolet Cobalt Service & Repair Manual: Fog Lamp Bulb, Replace
| Warning: Halogen bulbs contain
gas under pressure. Handling a bulb improperly could cause it to shatter
into flying glass fragments. To help avoid personal injury: Turn off the
lamp switch and allow the bulb to cool before changing the bulb. Leave the
lamp switch OFF until the bulb change is complete. Always wear eye protection
when changing a halogen bulb. Handle the bulb only by its base. Avoid touching
the glass. Keep dirt and moisture off the bulb. Properly dispose of the
used bulb. Keep halogen bulbs out of the reach of children. |
| Caution: Avoid touching the
bulb or letting the bulb come in contact with anything damp. Oil from your
skin or moisture on the bulb can cause the bulb to explode when the bulb
is turned on. If either comes in contact with the bulb, clean the bulb with
alcohol or a suitable degreaser and wipe the bulb dry. |
| 1. |
Raise and support vehicle using suitable
lift. |
| 2. |
Remove front fender liner as outlined
in "Front Fender Liner." |
| 3. |
Disconnect fog lamp bulb socket electrical
connector. |
| 4. |
Remove adjuster screw (1) from fog
lamp locking ring and lamp assembly, Fig. 1. |
| 5. |
Remove fog lamp screws (2), Fig.
1. |
| 6. |
Remove fog lamp projector assembly
(3) from fog lamp locking ring (5), Fig. 1. |
| 7. |
Turn bulb socket (4) counterclockwise
and remove from lamp assembly, Fig. 1. |
| 8. |
Reverse procedure to install. |
|

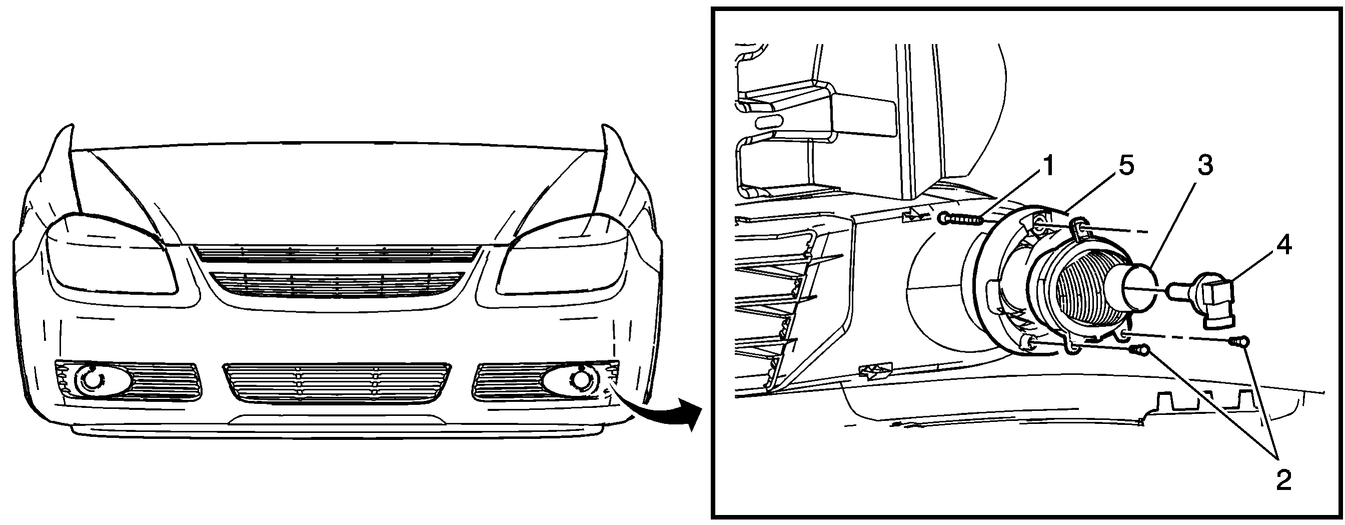

Fig. 1 Fog lamp bulb removal
