Chevrolet Cobalt Service & Repair Manual: Front Bumper Fascia Opening Cover
Removal
| 1. |
Remove front bumper fascia, as outlined
in Front Bumper Fascia. |
| 2. |
Remove front bumper fascia lower grille
push pin retainers (1), Fig. 1. |
| 3. |
Release grille from fascia using a
flat-bladed tool. |
| 4. |
Remove grille from fascia (3). |
|
Installation
| 1. |
Install grille to fascia ensuring locking
tabs are fully seated. |
| 2. |
Install front bumper fascia grille
push pin retainers (1), Fig. 1. |
| 3. |
Install front bumper fascia as outlined
in Front Bumper Fascia. |
|

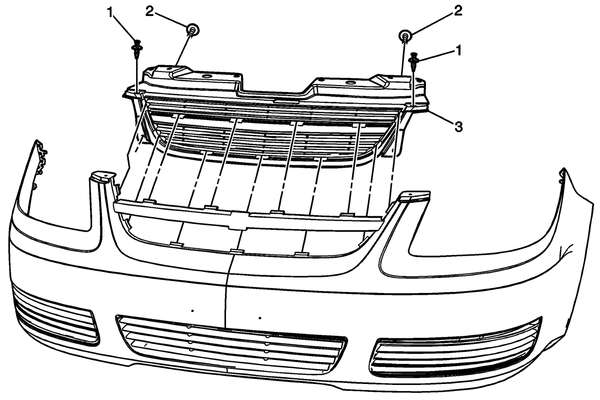

Fig. 1 Front bumper upper fascia grille
