Chevrolet Cobalt Service & Repair Manual: Engine Coolant Expansion Tank, Replace
| 1. |
Drain engine coolant into suitable
container. |
| 2. |
Reposition coolant expansion tank inlet
hose clamp using hose clamp pliers tool No. J-38185, or equivalent. |
| 3. |
Remove coolant expansion tank inlet
hose from expansion tank, Fig. 1. |
| 4. |
Remove underhood junction block and
bracket. |
| 5. |
Lift coolant expansion tank and reposition
expansion tank outlet hose clamp using hose clamp pliers tool No.
J-38185, or equivalent. |
| 6. |
Remove coolant expansion tank outlet
hose, Fig. 2. |
| 7. |
Disconnect coolant level sensor electrical
connector, Fig. 3. |
| 8. |
Remove engine coolant expansion tank
from vehicle. |
| 9. |
Reverse procedure to install. |
|

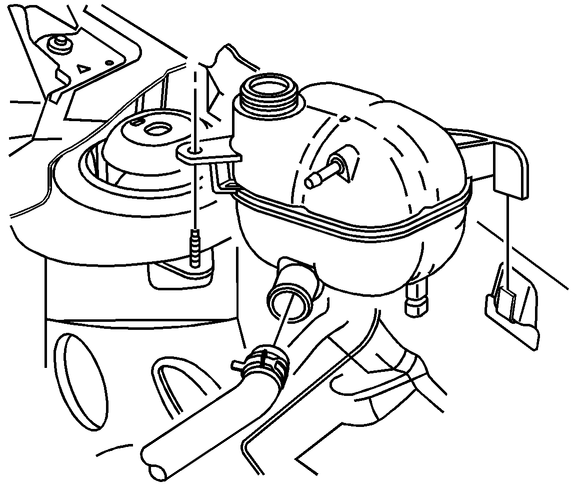

Fig. 1 Engine coolant expansion tank inlet hose removal

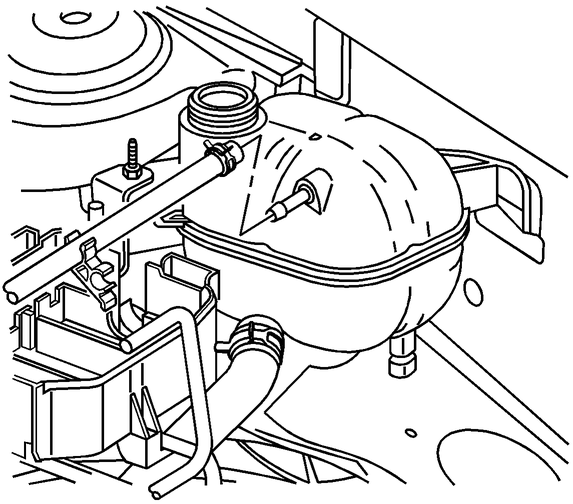

Fig. 2 Engine coolant expansion tank outlet hose removal

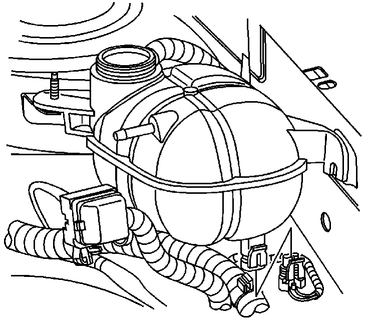

Fig. 3 Coolant level sensor electrical disconnection
